The type of this wood pellet machine is ZLSP 200B with electric motor whose power is 7.5kw. The production capacity is 80-120 kg/h. It is a D-type electric pellet machine, which means the roller is fixed and the flat die is rotating with the main shaft. Flat die pellet machine is small in size and portable, easy to operate. It is an economical type and suitable for small-scale production and home use.
Electric motor pellet machine ZLSP200B parameter
| Model Number | Power(kw) | Output (kg/h) | N.W./G.W.(kg) | Package Size(mm) |
|---|---|---|---|---|
| ZLSP200B | 3phase,7.5 | 80-120 | 200/230 | 1050*480*930 |

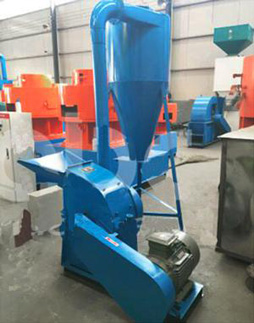

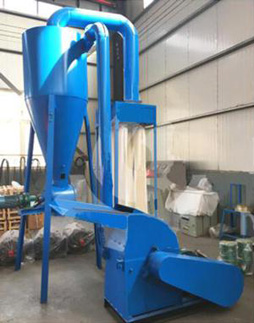

The type of this hammer mill is FSP198B. Its production capacity is 100-400 kg/h with the electric motor power of 3 phase and 3 or 4kw. Here is the detail parameters of FSP 198B hammer mill.
| Model | Output Capacity (kg/h) | Power | Screen mesh (standard) | Hammer Quantity | Weight(kg) | Diamesion(mm) |
|---|---|---|---|---|---|---|
| FSP198B | 240-400 | 3KW 3 phase | 4 | 16 | 120/135 | 1000*750*1120 |
| FSP198B | 240-400 | 4KW 3 phase | 4 | 16 | 120/135 | 1000*750*1120 |
