round baler with cutter
Round baler machine with cutter operating principle:
By accelerating the speed aviator, the movable blades in round baler machine can get power to spin and then cut off the straws before rolling into the casing. Then the movable and fixed blades will work together to beat, tear and rub the straws repeatedly until they are smashed. With the cooperating help of bilateral screws, feeding gear device and boost installation, the smashed straws can be transmitted to the balling machine, where they would get baled and wind automatically.
grass cutter round baler advantages:
- 2P hitch system and 360 degree transmission gearbox design, turning radius is smaller.
- middle and centre-mounted traction system, make it easy to cross a ridge and run in the field.
- high working efficiency. large round baler is the most efficient baler in all types.
- high rate and wide tires.
- strong structure. special desigh picking up system.
- bundling bales by net.
| Model | YK0910F | YK0910FW |
|---|---|---|
| Bale size(diameter x width) | 900 X 950mm | 900 X 950mm |
| Dimensions | 2450x1850x1600mm | 3000x2200x1650mm |
| Weight（approx) | 930kg | 1550kg |
| Pickup width | 1000mm | 1800mm |
| Working speed | 2-5km/h | 2-5km/h |
| Capacity(bales/hour) | 60-120 | 60-120 |
| Weight of bale(approx) | 30-50kg | 30-50kg |
| Horsepower requirement | 40-80HP | 60-100HP |
| Package size | 2500X1800X1600mm | 1500x1800x2200mm |

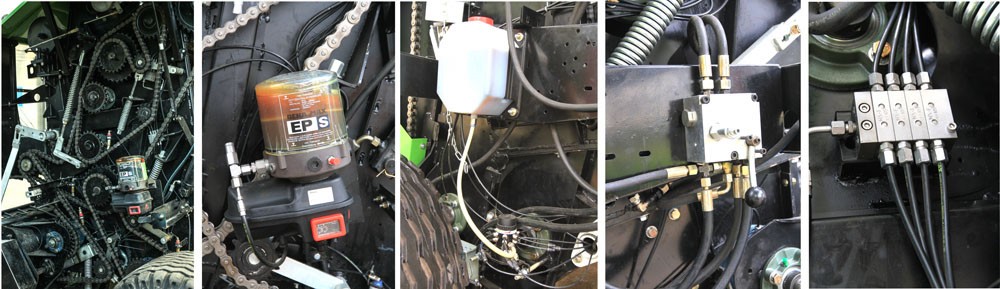

Auto oiling system
Auto oiling system imported from Germany, filling lubricant and butter into gears and bearing continues.
Monitor

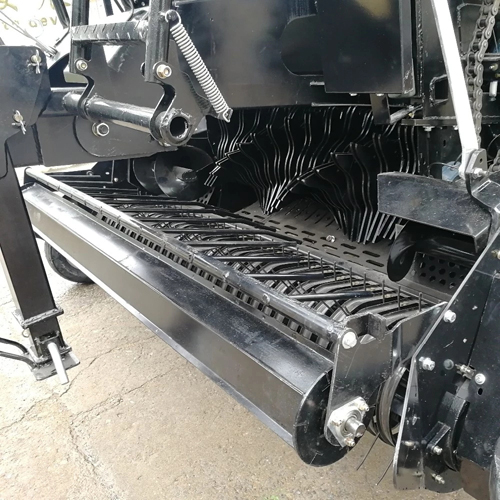

Indicate the working status, warning when chamber is full, feeding net auto, and warning when the bales ejected.Pickup and feed parts

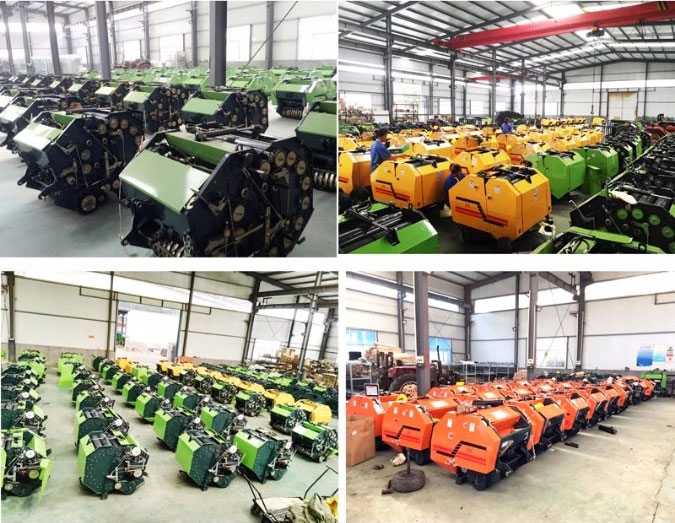

Spring teeth, auger and roto feeding together. Roto cutter with blades(optional) can cut the material into pieces around 7cm.Our workshop
After-Sales Service
- Training how to instal the machine, training how to use the machine.
- Engineers available to service machinery overseas.
- Enough sparts in ware house.
- Quick response, fast action in distinguishing and sending spare parts by DHL.
